Features
Join two units without using additional leads
8 angles of orientation (45-degree intervals) for each power outlets (certain regulations limit options in particular instances)
Many international power outlets to choose from
Dual power (2 circuits in one unit such as clean/dedicated and normal)
Many mounting options
Hybrid power (In short, power and data in one unit)
Protection modules such as power filters, circuit breakers, earth leakage devices.
Application:
Desk clamp-on
Free Standing
In Desk
Static
Surface Mounted
Colour
Black
Electrical
Operating Voltage:
110V ? 250V AC @ 50Hz ? 60Hz
Current: 15A
Max power:
1800W @ 110V ? 125V AC
3000W @ 220V ? 250V AC
Local electrical regulations will determine the final electrical rating of the system.
For higher current ratings, please consult your distributor directly.
Dimensions

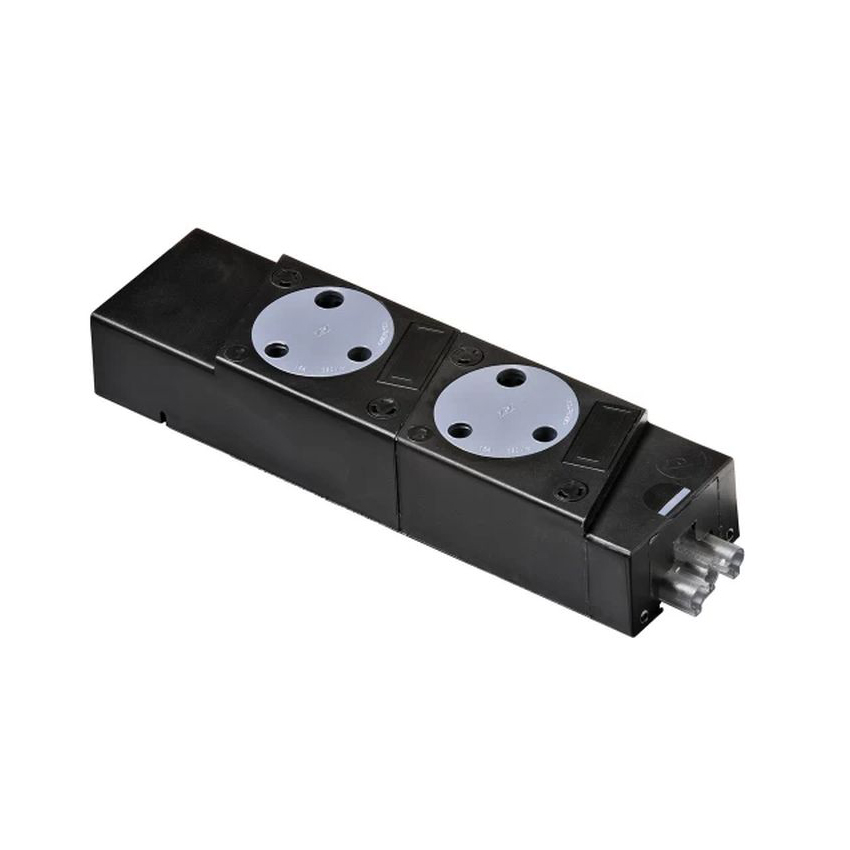

Dimensions (Two way):
Height: 36.5mm (Approx. 1,44 in.)
Width: 55mm (Approx. 2,17 in.)
Length: 204mm (Approx. 8,03 in.)
Dimensions (Four way):
Height: 36.5mm (Approx. 1,44 in.)
Width: 55mm (Approx. 2,17 in.)
Length: 342mm (Approx. 13,46 in.)
